How to Match a Stepper Motor Driver via Bipolar Chopper Calculus

Mastering Stepper Motor Driver Selection: An Analytical Engineering Framework

In industrial motion control design, a common misdiagnosis occurs when a machine experiences intermittent positioning drift, excessive thermal generation, or audible structural resonance: the field technician immediately blames the motor. However, physical teardowns and empirical oscillographic testing reveal that in over 70% of performance failures, the motor hardware is perfectly intact. The root cause is almost always a fundamental mismatch between the motor's internal stator windings and the drive electronics' power-switching stage. Selecting the ideal electronic drive is not simply a matter of finding a matching current rating; it requires a deep quantitative understanding of electromagnetic impedance, switching topology behavior, and fluid vector dynamics.

This engineering manual establishes a systematic, mathematical process for specifying, configuring, and deploying industrial motor drivers. Whether you are building precise multi-axis CNC gantries, high-throughput textile equipment, or automated packaging lines, the optimization of the electrical interface between your power supply, drive inverter, and motor stator determines the ultimate stability boundary, velocity threshold, and reliability factors of your machinery.

1. The Physics of Bipolar Constant-Current Chopping

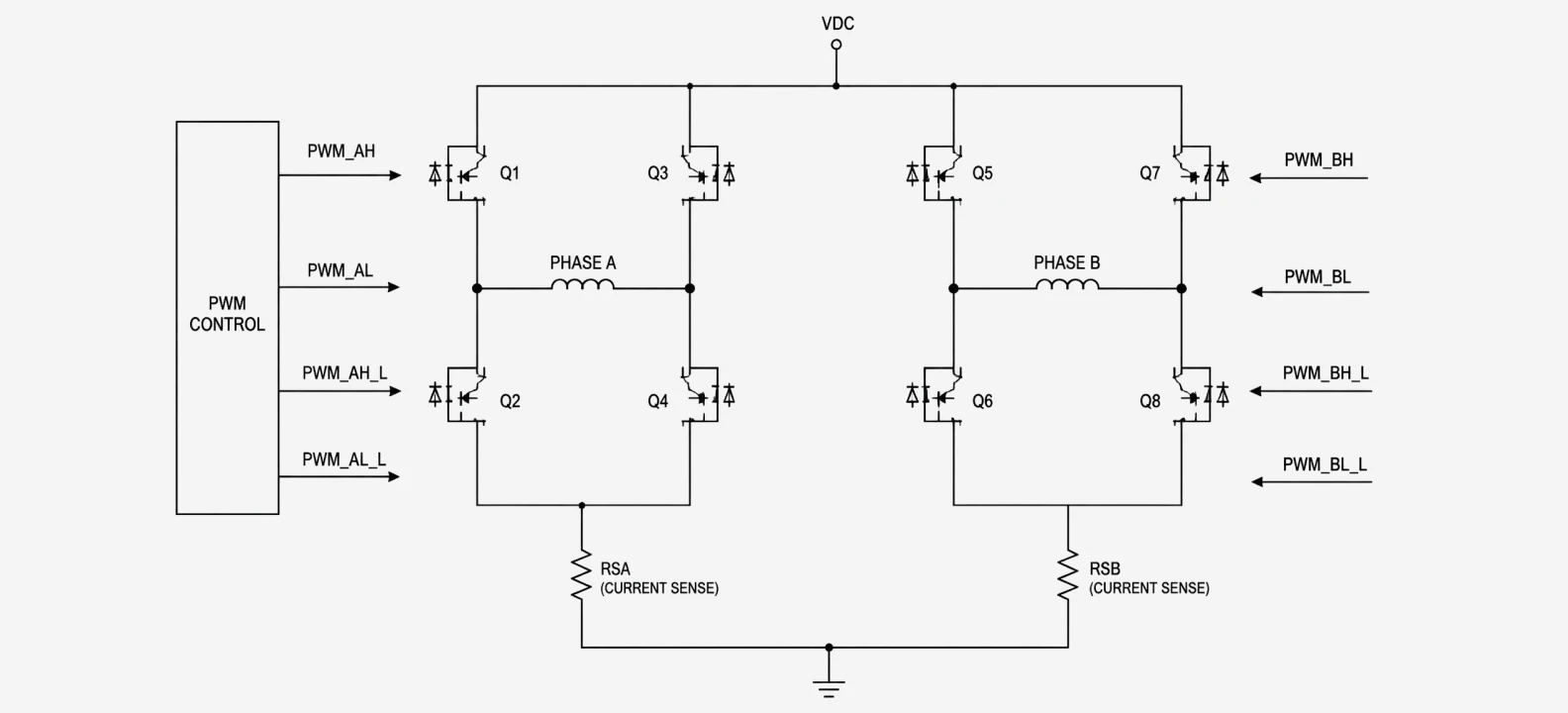

Modern industrial step control solutions rely entirely on the bipolar constant-current chopper drive methodology. Unlike primitive variable-voltage drive networks of past decades, a modern chopper drive operates as a high-frequency switching regulator. It uses a dual H-bridge switching topology consisting of four power MOSFETs or IGBTs per phase to regulate current via high-frequency Pulse Width Modulation (PWM). The primary purpose of this constant-current chopper is to apply a high bus voltage across the highly inductive motor windings to force the phase current to rise to its commanded target threshold as rapidly as possible, after which the driver rapidly cycles the voltage to maintain that exact current level.

The internal microcontrollers inside digital drives monitor the current feedback via precision low-side sensing resistors. The frequency at which this chopping occurs typically ranges between 20 kHz and 40 kHz. If the chopping frequency drops below 20 kHz, the switching pulses bleed into the audible spectrum of human hearing, producing a high-pitched squeal that degrades the workspace environment. Conversely, if the chopping frequency is set too high (e.g., exceeding 50 kHz), the switching losses across the gate capacitances of the MOSFET power stage rise exponentially, leading to severe thermal dissipation issues inside the drive housing. When evaluating components for dense control cabinets, engineers must examine the continuous thermal dissipation performance of these internal H-bridges under full duty-cycle loads rather than relying on unverified maximum ratings printed on marketing datasheets.

2. Quantitative Electrical Calibration: Peak Current vs. RMS Current Vectors

A leading cause of premature phase-insulation failure and localized winding shorts in hybrid stepper motors is the incorrect configuration of current profiles. Stepper motor manufacturers rate their stators based on a continuous thermal current threshold, which is fundamentally an RMS (Root Mean Square) metric. However, many digital drive manufacturers specify their drive output limits using Peak current metrics. Configuring a step drive using peak metrics when your calculations are based on RMS vectors—or vice versa—will cause either a severe drop in torque or rapid thermal runaway.

To maintain optimal torque output without inducing magnetic saturation of the stator core laminations, engineers must utilize the standard sinusoidal vector conversion when setting up a microstepping drive. The relationship between the two metrics is governed by the following mathematical law:

Peak Current = RMS Current × 1.414

Consider an industrial application utilizing a motor rated at 4.2A RMS per phase. The drive's output current parameter must be set to a Peak current limit of approximately 5.9A. If a technician incorrectly sets the drive's peak output limit to exactly 4.2A, the motor will only receive 2.97A RMS. This under-current configuration results in a 30% reduction in torque output, causing the axis to drop steps during high-acceleration toolpaths. Conversely, if an RMS value of 4.2A is inputted into a drive that expects a Peak value, the actual current delivered will reach 5.9A RMS. This over-current condition creates a 41.4% increase in current, forcing the iron core into immediate magnetic saturation, causing severe copper losses, and risking permanent demagnetization of the internal Neodymium-Iron-Boron (NdFeB) rotor magnets if temperatures cross their Curie point threshold.

Industrial Motor-Driver Technical Parameter Matrix

The table below provides a verified engineering baseline for pairing standard NEMA frame configurations with corresponding electrical drive parameters under continuous industrial duty cycles:

3. Voltage Optimization: Overcoming Inductive Reactance and Back-EMF

To understand why power supply bus voltage dictates high-speed torque performance, you must examine the electrical time constant of the motor windings. The inductive time constant (τ) is defined by the basic formula τ = L / R, where L represents the phase inductance and R represents the phase resistance. This constant defines the time required for the current in a winding to reach approximately 63.2% of its maximum value after a voltage pulse is applied. As the operational velocity of the motor increases, the step pulse width shrinks dramatically, leaving less time for the current to climb to its full commanded value before the drive must switch phases.

Furthermore, as the permanent-magnet rotor rotates within the stator, it acts as an electrical generator, inducing an opposing voltage back into the stator coils. This parameter is called Back-Electromotive Force (Back-EMF). The magnitude of the Back-EMF is directly proportional to the rotational velocity of the rotor. At elevated speeds, the net voltage available to drive current into the coils is severely limited by the difference between the power supply bus voltage and the generated Back-EMF, divided by the total inductive reactance of the system.

To achieve high dynamic performance on rapid-travel axes, engineers must operate a standard 2-phase stepper motor at a supply voltage significantly higher than the motor's nominal DC voltage rating. An established, reliable empirical industry formula for calculating the optimal power supply voltage to preserve your high-speed torque profile is:

V_optimal ≈ 32 × √(L)

Where L is the phase inductance measured in millihenries (mH). For instance, if a high-torque NEMA 23 winding exhibits a phase inductance of 4.0 mH, the ideal power supply bus voltage should be calculated as 32 × 2 = 64 VDC. Operating this same motor from a standard 24 VDC bus will cause the dynamic torque curve to drop abruptly at low speeds, leading to premature motor stalling long before reaching its mechanical speed limit.

4. The Mechanics of Microstepping: Torque Loss Realities and Resonance Control

Microstepping is an indispensable control method for smoothing out the step increments of hybrid motors. By dividing a standard 1.8-degree full step into smaller angular subdivisions, the drive balances current vectors between phase A and phase B in a precise sine-cosine distribution. However, machine builders often fall victim to the myth that increasing the microstepping resolution via drive dip-switches yields a linear, equivalent increase in physical positioning accuracy.

In physical reality, the incremental torque per microstep drops off severely as the microstepping resolution is raised to extreme values. The math governing incremental torque is defined by:

Incremental Torque = Holding Torque × sin(90 / N)

Where N represents the number of microsteps per full step. When a drive is configured to 1/16 microstepping, the actual incremental torque between adjacent microsteps drops to a mere 9.8% of the motor's absolute holding torque. If your machine axis encounters structural friction, ball-screw stiction, or external machining forces that exceed this 9.8% threshold, the rotor will lag behind the commanded electrical vector until an error of several microsteps accumulates, providing enough torque to break the friction. Consequently, high microstepping ratios like 1/64, 1/128, or 1/256 do not provide true sub-micron metrology-grade accuracy; their primary function is to transform harsh step increments into smooth motion, reducing acoustic noise and preventing mechanical resonance.

To combat this limitation, advanced digital step drives implement real-time resonance morphing algorithms. At low speeds, the drive uses high microstepping resolutions to guarantee fluid, vibration-free motion. As the rotor velocity crosses the mid-band frequency threshold—the specific velocity zone (usually between 4 Hz and 12 Hz) where the natural mechanical resonant frequency of the motor can cause complete torque dropout—the internal processor automatically morphs the current waveform back toward a lower-resolution profile. This optimizes the phase current vector alignment, dampens the harmonic oscillations, and prevents sudden mid-band stalling.

5. Advanced Control Paradigms: Open-Loop vs. Closed-Loop and Servo Migration

When an automated application demands guaranteed positioning execution under highly dynamic, variable load profiles, open-loop control systems eventually reach their physical limits. In traditional open-loop setups, engineers must oversize components by 40% to 50% to build a safety margin against unexpected torque overloads, which increases system costs and envelope space requirements.

Upgrading to a modern closed-loop stepper motor architecture transforms the role of the drive electronics. Rather than blindly outputting current to the stator phases, a closed-loop drive continuously monitors a rear-mounted optical or magnetic rotary encoder. Operating via Field-Oriented Control (FOC), the drive continuously tracks the exact error vector between the commanded step position and the physical rotor angle. The drive then dynamically modulates the current phase angle and magnitude to match the real-time load demand. If a tool strike or part jam creates a massive instantaneous resistance, the drive immediately scales current up to its absolute peak limits to maintain position. When the axis is at rest or under a light load, the drive lowers current to near-zero, eliminating the severe idling temperatures typical of open-loop hardware.

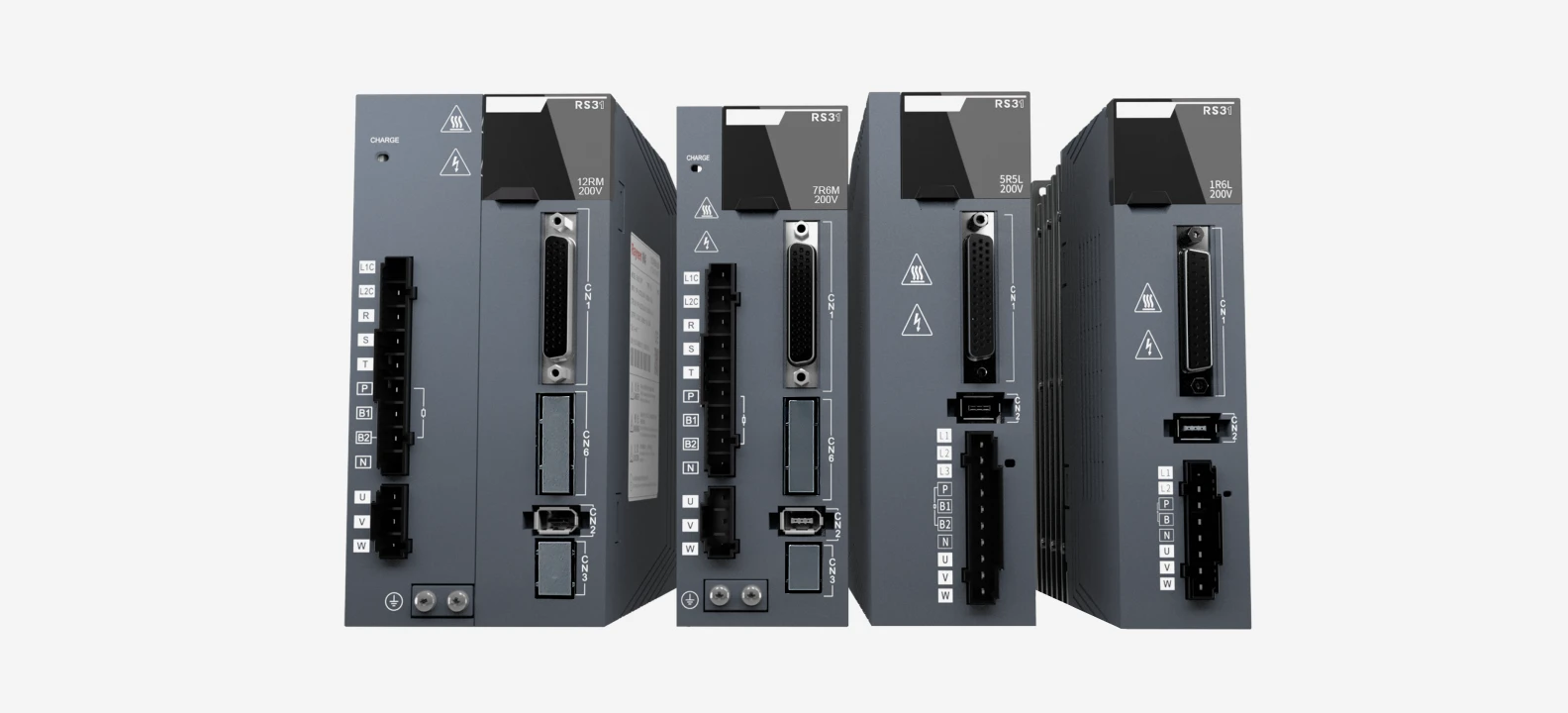

For high-speed automated systems where production throughput requirements push velocities past 1,500 RPM, the physical winding impedance of high-pole-count step motors becomes an unyielding bottleneck. For these heavy-duty, high-velocity environments, engineers should transition the axis to a dedicated high-bandwidth rs3 servo drive platform. Servo drives pair with low-pole brushless permanent magnet motors, using vector space modulation to optimize real-time power delivery and eliminate the high-frequency impedance drop-offs that restrict traditional step-based machinery.

6. Engineering Commissioning and Field Verification Protocol

Before releasing a newly assembled motor-driver combination to an active production line, field engineers must validate the electrical installation using the following checklist:

• Inductance Clearance Calculation: Check the phase inductance of your motor against your power supply bus to guarantee your maximum target velocity falls safely below the Back-EMF crossover point.
• Current Verification: Cross-reference the drive's software settings or physical dip-switches to verify that the configured current is matched to the motor's RMS rating adjusted for peak scaling laws.
• EMI Suppression and Ground Paths: Ensure that the drive's chassis grounding plate is directly bonded to the main control panel enclosure with a low-impedance ground strap. This suppresses high-frequency radiated EMI from the 30 kHz PWM switching cycles.
• Mass-Inertia Ratio Auditing: Calculate the mechanical inertia ratio (J_load / J_rotor). For open-loop configurations, keep this ratio below 10:1 to maintain system stability. For closed-loop platforms, ratios up to 30:1 can be tuned safely via proportional-integral (PI) loops.

If you require validation of your inertia ratios or electrical parameters before deployment, contact our engineering team for dedicated application support.

Frequently Asked Questions (FAQ)

Question: Should the driver current setting match the exact rating printed on the motor label?

Answer: Not necessarily. The current rating printed on an industrial motor label is almost always an RMS (Root Mean Square) rating. However, many digital step drives configure their output profiles using Peak current parameters. If your drive expects a peak value input, you must multiply the motor label's RMS value by 1.414. Setting a peak-configured drive directly to the nominal RMS rating will restrict total motor torque by approximately 30 percent.

Question: Why does my stepper motor experience an abrupt loss of torque at high speeds?

Answer: This behavior is dictated by inductive reactance and Back-EMF. Because a stepper motor's windings are highly inductive, the inductive impedance rises linearly with speed, restricting current from reaching its full potential during fast step cycles. Simultaneously, the spinning rotor acts as a generator, creating a Back-EMF that opposes the power supply. To maintain torque at higher RPMs, you must increase the drive's bus supply voltage.

Question: Does selecting a higher microstepping setting on the drive increase the absolute precision of my machine?

Answer: No. Microstepping is designed to reduce structural vibration, smooth out step transitions, and mitigate acoustic resonance. It does not scale true mechanical positioning accuracy. The incremental torque generated between microsteps drops off drastically as the division ratio increases. If the machine's mechanical stiction or structural friction exceeds this fractional torque threshold, the motor will lag behind the electrical position until several microsteps have accumulated.

Question: Is it safe to use a 48V power supply on a motor whose datasheet lists a nominal voltage of 3V?

Answer: Yes. The low voltage listed on a stepper motor datasheet is simply the nominal voltage required to push the rated current through the phase resistance at a complete standstill (V = I x R). Modern constant-current chopper drivers regulate the current dynamically using high-frequency PWM switching. Supplying 48V or even 80V to the drive is perfectly safe and highly recommended, as it allows the current to overcome inductive winding opposition at high speeds.

Question: What are the operational symptoms of mid-band resonance, and how can it be resolved?

Answer: Mid-band resonance typically manifests as a sudden mechanical shudder, a harsh rattling noise, or an immediate motor stall within a specific speed window (usually between 200 RPM and 400 RPM), even when the motor is completely disconnected from external friction loads. It is caused by an uncontrolled feedback loop between the rotor's mechanical oscillation and the drive's electrical switching frequency. It can be resolved by upgrading to a digital drive that utilizes active electronic damping or by adjusting the microstepping parameters.

Question: What makes a closed-loop stepper drive superior to a standard open-loop drive in an industrial environment?

Answer: Closed-loop drives utilize continuous encoder feedback to execute true Field-Oriented Control (FOC). This completely eliminates missed steps, as the drive can instantly detect and compensate for positioning lag caused by unexpected external forces. Furthermore, closed-loop drives adjust current dynamically based on real-time mechanical load requirements rather than continuously pumping maximum current. This lowers motor operating temperatures, extends bearing life, and permits much faster acceleration rates.

•
